Tom Martin's Development Log

Further tweaks to the generator

I created a ‘printText’ function which would run through the generator for as many times as Jacky had set the levelCount to (6 at the time of writing, plus one ‘end’ scene), and dump the generated text into an empty game object. I could then, with a few clicks, export that text into Notepad and check through it for errors, repetitions, or just ways in which it could be improved.

I played through Jacky’s completed build, and one of my earliest reflections (and echoed in some feedback from players) was that while the information within each level hung together, a sense of progression was lacking.

In order to regain this, I implemented a new rule: {0:option|3:option}. A regex would check for a number followed by a colon, then parse the string number into an int, and add that plus the option string to a temporary Dictionary<int, string>. By iterating through the Dictoinary and comparing the int keys to PlaythroughCount, returning the highest int that is equal to or lower than the PlaythroughCount, I could guarantee that the most structure-appropriate options would be shown.I also divided the introductory texts up into levels, and had PlaythroughCount determine which table to draw from.

Writing

Stephen King’s book Danse Macabre provided a useful reference on what drives horror – while I can’t say that I was able to implement all of its guidance, I did find the following useful:

• The idea of ritual – an image or a phrase that, when repeated, gains added dramatic significance or weight. The games writer and narrative designer Whitney Beltran (aka Strix) agrees on the usefulness of ritual, and given more time I would certainly deepen my research to include works like Victor Turner’s From Ritual To Theatre and Dramas, Fields and Metaphors. I defined at the top (in a json called ‘constants’) one of six sentences that would be repeated with increasing frequency the further the player wen through the game.
• Horror is always “in search of another place, a room which may sometimes resemble the secret den of a Victorian gentleman, sometimes the torture chamber of the Spanish Inquisition… but perhaps most frequently and most successfully, the simple and brutally plain hole of a Stone Age cave-dweller.” This prompted me to refocus my writing on place, and what might come into it…

Bouncing off Jacky’s work was great for me – I’m a reactive creative, after all. I particularly enjoyed the more grammatically complex areas of generative writing – nesting verb tenses and different adjective lists, for example.

Player feedback

• ‘A way to skip the typing text would be good’
  • Added an ‘E to skip’ popup and function to the canvas
• ‘Not clear what’s going on at the start, or where I should go’
  • Brute forced this by making level (0,0) draw from a discrete ‘tutorial’ pool of text, which sets out the basic story, introduces movement, the purpose of the hedrons, and what the player should be looking for in terms of an exit.
• ‘It would be easier to read if the text would break between punctuation.’
  • Exposed different WaitForSecond values for letters, commas and full stops.

Conclusion

Though the final result hangs together well enough, I think I would need at least another week of testing and writing to really make it sing. It was astonishing to me just how much groundwork I needed to lay before I could even begin writing the thing properly, and though that led to me doing a great deal of experimentation in programming the generator, it left me with little time to experiment with what it could generate.

This process was also useful in reflecting on my assumptions about design processes. Without the prototype in Perchance, then my parsing system, then my new structuring system, I felt lost in the woods; with them, I started re-appraising the design ideas I had junked during scoping. Maybe they were more appropriate than they had seemed? Despite my earlier disappointment with storylets, I had essentially ended up using them in the final product, after all.

I’ve learned from this that I might be more of a problem-solving designer, and that my route to uncovering a final design lies in lots of prototyping rather than too much diagramming. In future I will try to stay aware of this, and build in time to prototype, reflect, plan, and iterate as many times as possible during the development process!

Input language

Taking my cue from the construction of both Perchance and Tracery, I chose to use the following symbols the signify variables and options: [variable] and {option|option}. A [variable] might represent a call to another structure, or a randomly chosen item from a list. An {option|option} represents an either/or choice – the generator will display one of the options. This is more useful for quickly changing grammar on the surface, or adding ‘stings’ to the end of phrases{; like this, for example|.} And of course, it allows for nested grammars and variables, like {this one, [name].|{this|that [adjective]} version [location]}!

By choosing a familiar language I avoided the pitfalls of ‘reinventing the wheel’, and could take advantage of a ‘reverse engineering’ mindset in order to build this generator from scratch.

Input method

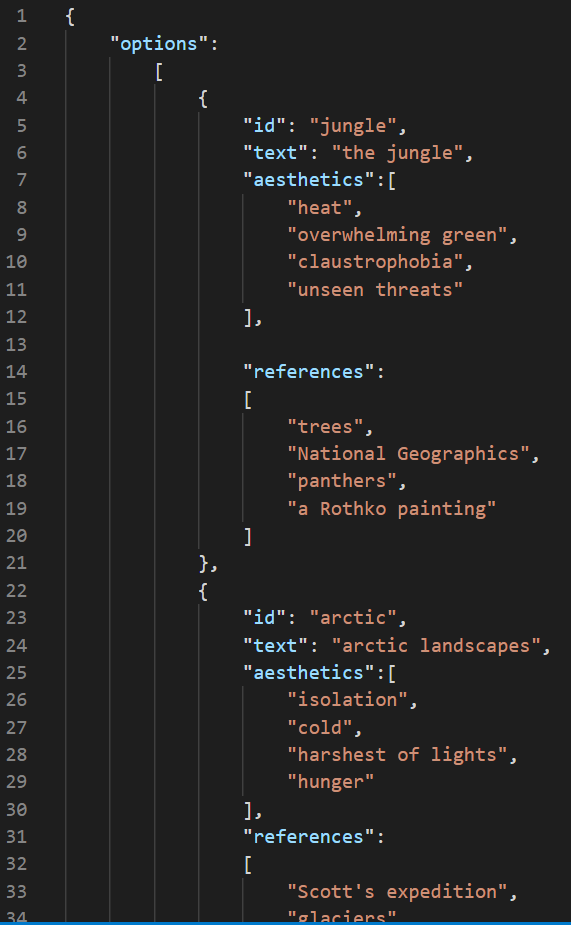

I decided on using the .json format, as it is lightweight and simple to write. A json consists of ‘tiers’ of information organised into {objects}, values and arrays[]. Here’s an excerptof a json with multiple objects, values and arrays:

The major upside to working with jsons is that they don’t require anyone to open Unity or search through any code in order to edit the generator’s content – if I were collaborating with someone on this generator, they could add in as much as they wanted, and as long as their entries followed the correct structure they would be absorbed by the generator with ease. I understand that there are Excel-to-json convertors that make this pipeline even easier…

Importing Jsons

Well, this was boring to learn. Apparently Unity’s JsonUtility doesn’t speak directly to Jsons that contain arrays, so you have to create a ‘wrapper’ class to import the file. For example, here’s my GenericJsonArray class:

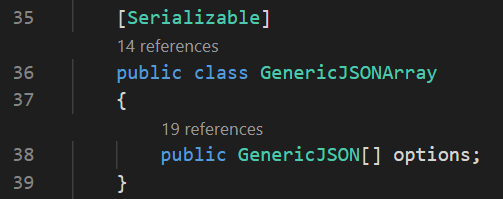

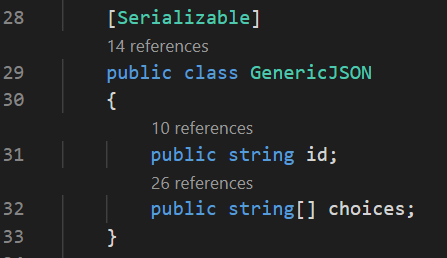

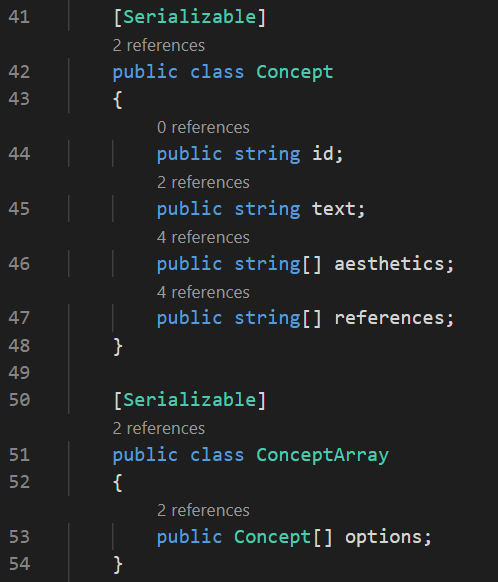

Then you have to declare your regular Json class – in this case, GenericJson, each of which contains a single string ‘id’ and an array of strings called ‘choices.’

In the event of needing more complex nesting – for example, with each level’s concept, which contains multiple string arrays of ‘references’ and ‘aesthetics’ – I needed to define a whole other pair of classes. Below are my ConceptArray and Concept classes:

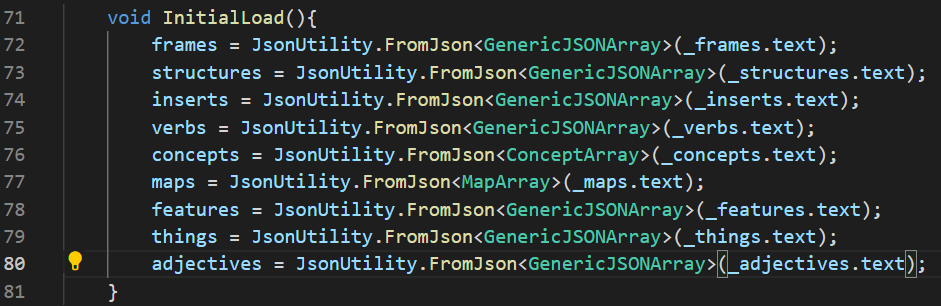

With the classes defined, a single line of code ‘deserializes’ the json (attached as a public TextAsset) into game-readable information. I kept all of this code in a single script called LoadJSON.cs.

Phew! (Apparently external tools like NewtonSoft’s Json.Net can work more directly with jsons than Unity’s built-in tools; I found them to be just as difficult to use, but I think that speaks more to my lack of experience than to the quality of the tool.)

Filling the dictionary, setting constants and selecting structures

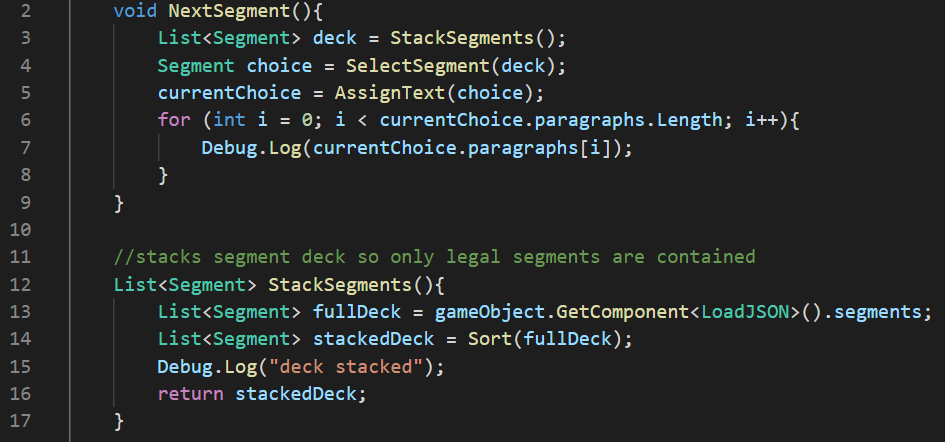

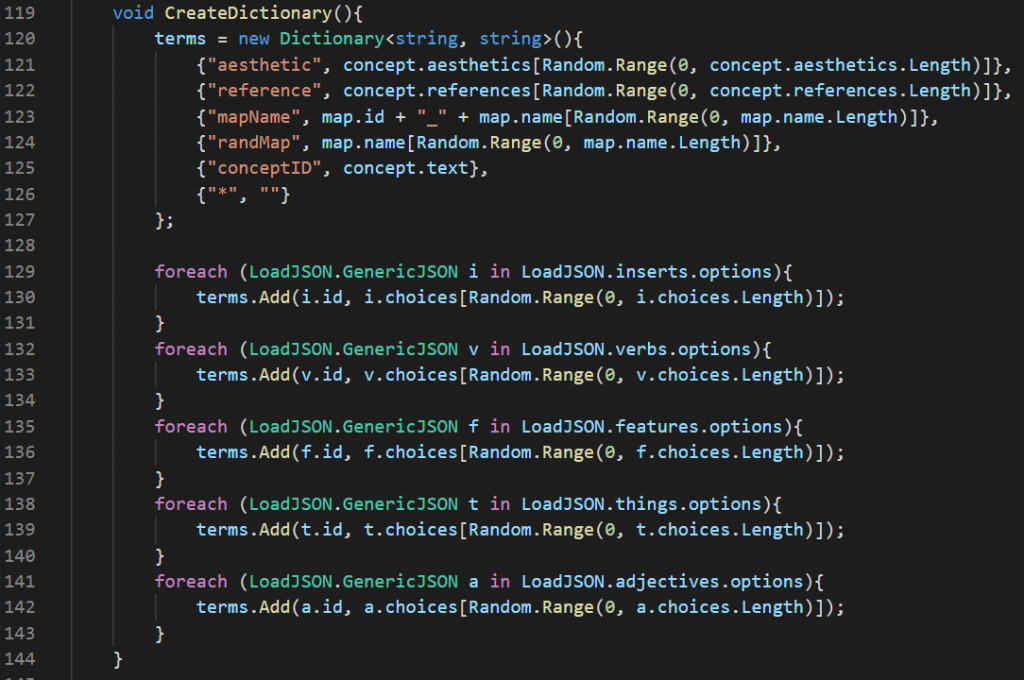

The first thing that TextSelector.cs does is fill a Dictionary with terms. This was my first time working with the Dictionary class, and I found it a really useful way of accessing variables – it’s essentially a container for pairs of information, organised into a ‘key’ and a ‘value’. A series of forloops enter the ‘id’ of almost every GenericJson (things, adjectives, inserts, features, verbs) into the key column, and a randomly selected ‘choice’ from that ‘id’ in the value column. That way, if a [variable] is encountered that matches one of the Dictionary’s keys, then it can immediately access the value at that index! (Dictionaries aren’t limited to pairs of strings – by using ints or floats one could tie most kinds of simple, game-pertinent information to another value…)

Next, the script sets the constants for the level – level name, concept, and the features most prominent in the level. It can receive guidance from the level generation script in this, but mostly it’s just making random choices.

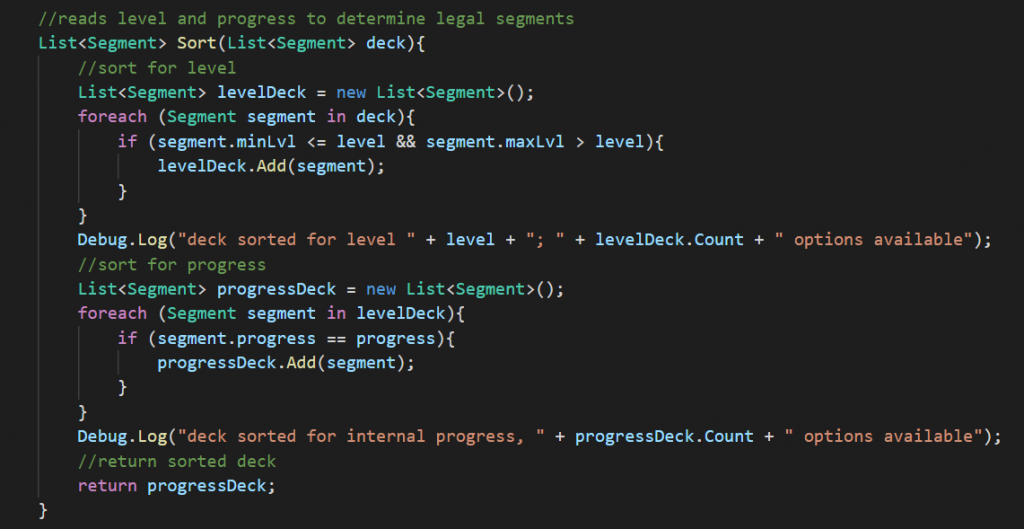

Finally, it chooses the appropriate structures through three different functions: SetStartText(), Populate() and SetEndText(). SetStartText() draws from the ‘introductions’ list in frames.json; Populate() assigns a randomly chosen structure from structures.json, and SetEndText() chooses from either a ‘generic’ signoff or a ‘spooky’ one, again stored in frames.json. (Why store the structures in different jsons? So the code just has to worry about returning [Random.Range(json.options.Count)] rather than knowing which index to pick! With this approach I can also add new content arrays into structures.json without worrying about pointing to the wrong index. In fact, in polishing for submission, I might even split frames.json into startstructures.json and endstructures.json for even more programming clarity…)

Parsing variables

But how do we know what a variable contains? It would be extremely performance-intensive to parse every character into lists of words and try to match each one to the Dictionary. Instead, I used regular expressions – or ‘regex’ – to parse each string for a number of matches, and String.Replace() to alter the structure in question.

Regex are sequences of characters used in string searching, and also in find-and-replace functions. They also look like gibberish – luckily, regex101.com allows you to test your regex on a string, as well as to consult a database of legal expressions.

My parsing function uses three different regex(es?) to process a string:

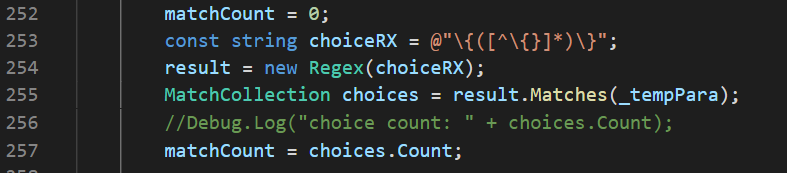

• {options} – basically, this regex searches for anything between a pair of curly brackets, and includes the curly brackets themselves by using a ‘look behind’ and ‘look ahead’ as capture groups. The output is helpfully organised into two groups – {options} and options. If there are any matches, we increment the integer matchCount, save the first group (which will be replaced later) and process the second like so:

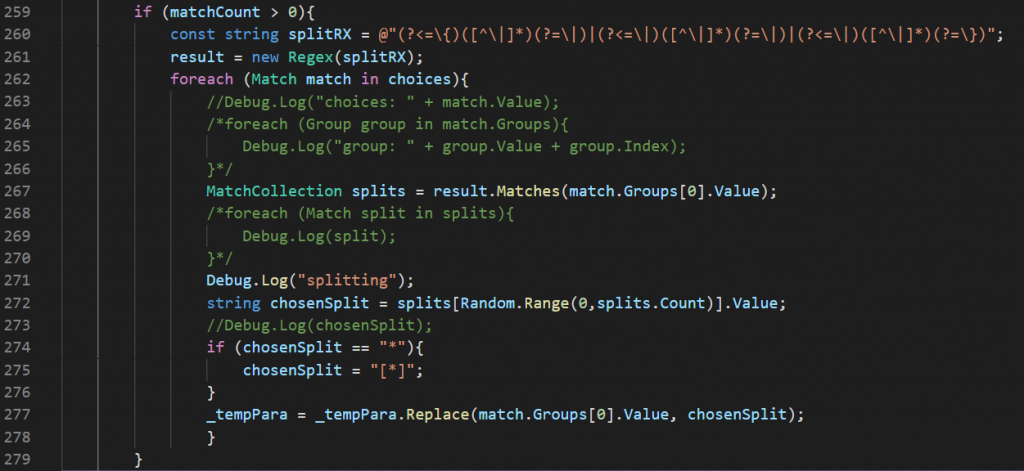

• split|split – a new Regex is applied to every {options} result, looking for any series of characters on either side of a vertical slash. It will then choose one of these ‘splits’, and replace the entirety of {options} with that split. Importantly, in the case of {this option {another option|and another} | or this one} the function will ignore {this option {another option|and another} | or this one}, even though it’s possible for the ‘top level’ option to remove the ‘lower level’ option from consideration. This isn’t super-performant, but the Regex required to define anything more complex than this is basically magic to me. Since the function loops back on itself, it also avoids any errors caused by dangling {‘s or }’s. At this point we reset the matchCount to 0.

• [variables] – with one round of simple {options} parsed, it’s time to move on to matching for [variables]. Luckily, the same capturing rules apply from my first Regex, returning [variable] as well as variable. If there are any matches, we increment the matchCount, then as long as the string variable is a match for one of the Dictionary’s keys, I can replace [variable] with that key’s value, which is a random choice from the ‘id’! (If there’s no Dictionary match, I have it output ‘NOVAR’ to signify a ‘broken’ or ‘dangling’ variable.)

If, by the end of the function, the matchCount has not reached zero, it loops back to the first {options} check, and continues looping until the matchCount rests at zero. Then the function returns the final version of the initial text so it can be displayed to the player!

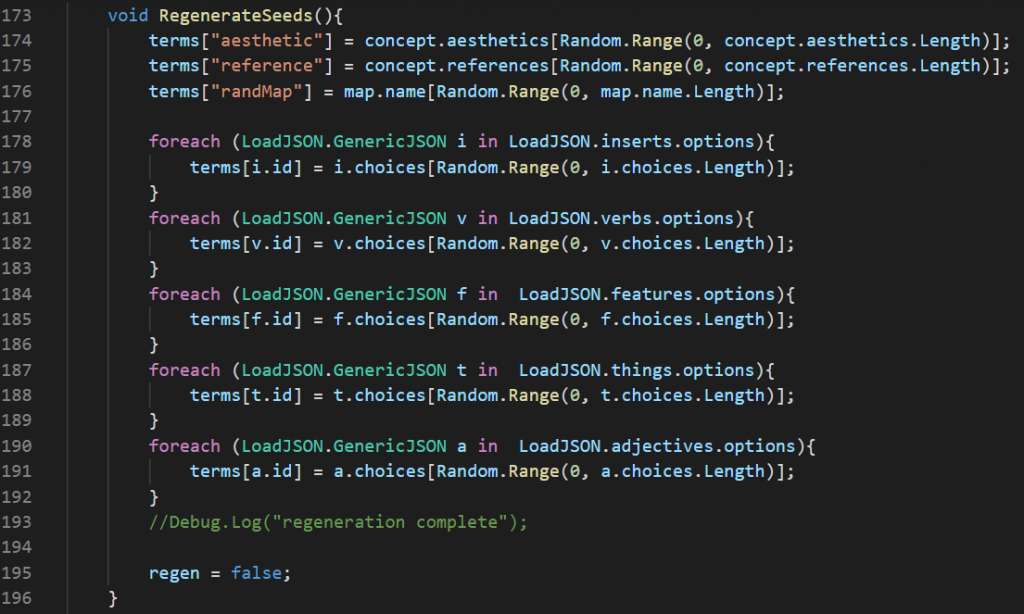

Within the parsing function I have also secreted the RegenerateSeeds() function, which essentially causes every random variable in the Dictionary to ‘reroll’. I’m sure there’s a more performant way of doing this, but I couldn’t find a safe way of altering the Dictionary while it was being searched.

Useful modifiers

For ease of writing (and my own sanity) I implemented the following extra modifiers as regex checks of their own:

• [c.variable] – if the function encounters a ‘c.’ in a variable string, it will return the result but with the first letter in upper case, using C#’s String.ToUpper() method.
• [r.variable] – by prefacing a variable with ‘r.’, I instruct the program to return the variable in duplicate, depending on the number of levels the player has visited. This results in unpunctuated, repetitive stream of consciousness, a technique that can quickly create a sense of acceleration, loss of control, or sensory overload.
• {number-number} – if the ‘split’ regex encounters two numbers separated by a dash, it knows to return a random number between the first and second number.
• {*|*} – if the ‘split’ regex encounters an asterix, it knows to replace it with [*], which I use to represent an empty string. This is handy if I need to quickly change the likelihood of a particular option being chosen, eg. {x|*|*} has a one in three chance to return ‘x’.

Possible tweaks

A method I have yet to code (and may run out of time in which to do so) is the ‘spookifier’, a way of tracking how long the player has gone without seeing a ‘spooky’ bit of text [reference procedural storytelling]. I imagine this could be achieved by adding a variable prefix – let’s call it [sp.] – which will only return the following variable if an integer is high enough, and on doing so resets the integer to 0. The integer would increment every time a string is fully parsed, as long as it wasn’t reset during that parse. This approach would yield a more consistently structured result than the current approach, which leaves ‘spooky’ interventions up to chance.

When I had finished planning what I wanted my generator to do, I assumed I would be able to jump straight into building it. This was far from being the case – I quickly realised that I would have to define the scope of the generator more clearly if I were to have any hope of finishing it before the deadline, as understanding what I wanted the generator to do and how it would go about it were two very different propositions. I wasn’t prepared for quite how long this was going to take, or quite how many false starts I would end up making. Jacky’s work was continuing apace, and I felt like I was lagging behind.

Design Attempt 1 – structures and storylets

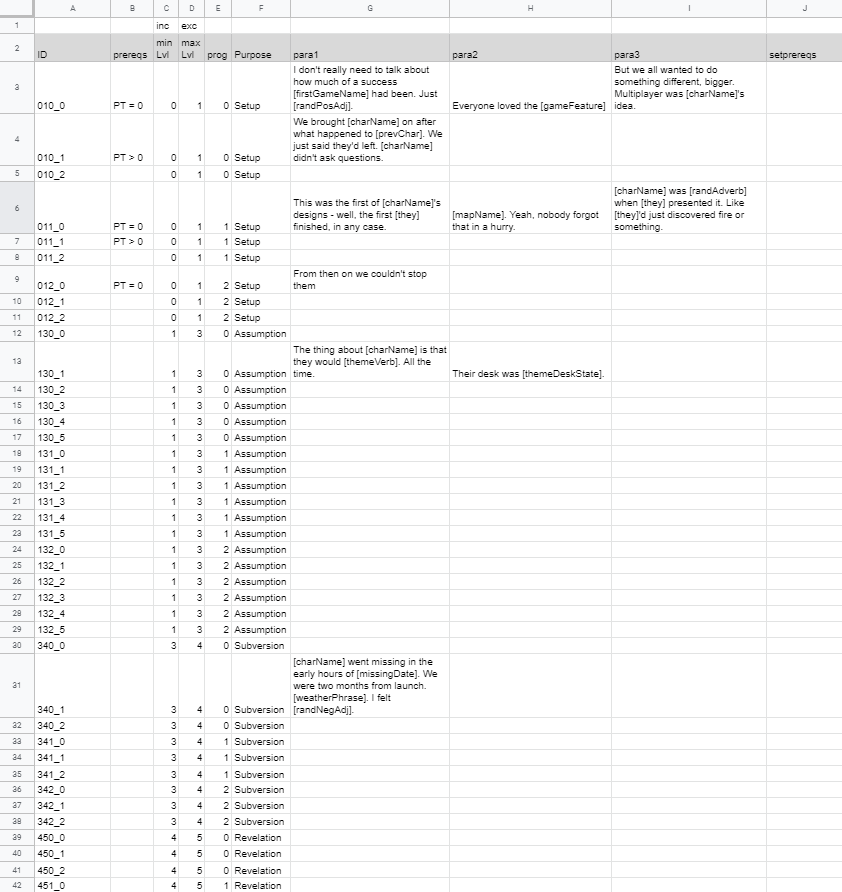

My first swing at designing involved using a storylet system (as mentioned in the previous devlog) which would check for levelCount, progress, and any other prerequisites set by previous storylets. However, I would need some consistency in how the levels worked in order to deliver a coherent narrative structure, akin to the one I had defined in my research. Through a discussion on campus, Jacky and I decided that each ‘level’ would be divided into three ‘versions’, each depicting a different phase of the development process: graybox, textured, and populated. For each version we landed on a three paragraph structure – one triggered on entering a level, one on entering the ‘killbox’ in the centre, and one on leaving the level. The idea was for an unnamed lead developer to reflect on the contributions of various ‘disappeared’ level designers on their lauded 90s FPS – by the time the player entered the second and third set of stages they would be assuming something about what had happened to the developer; in the fourth set they would question that assumption, and in the fifth they would be hit with the reality of what had happened.

I used Unity’s scriptable objects as a way to integrate my storylets. Jsons might have been appropriate, but I didn’t want the game to have to parse every single json in order to find out which ones were appropriate to show the player; better just to list all the ‘segment’ scriptable objects and have them point to individual jsons which could be imported and presented to the player. First, the script ‘stacked’ the deck by removing all inappropriate segments; then it would shuffle and return a random segment. Each segment contained three paragraphs, which would be assigned to three different colliders in the generated level, and displayed to the player OnTriggerEnter().

•

•

•

The problem was ultimately one of time, effort and coherence. Having designed this system, and then begun work on filling in the text, I realised just how interdependent each storylet would be on the others, and how – in order to avoid a sense of repetition or dissonance – I would be doing both high intensity curatorial work (to make it make sense) and high intensity procedural work (to make it feel different with each playthrough). They may have been the correct fit for a horror story generally, but storylets (seem to) function best when they’re used as events, and tied to specific player actions. With little in the way of player interaction in this piece, they ended up feeling neither particularly reactive or elegant.

In hindsight, I also think this decision constrained Jacky’s creativity somewhat; in order to accommodate what I perceived to be an easier approach to text generation, he directed his generator away from some of the more surprising levels it had been making.

Design Attempt 2 – setpieces

Frustrated with the vagueness of my storylet approach, I revisited one of my earlier devlogs (it’s the same one that’s linked above). Convinced that a lack of set-pieces was blocking me, I talked to Jacky about changing the game’s construction so that it reflected one of three possible set-pieces:

• the multiplication of features (more barrels or lights or stairs)
• the subtraction of features (fewer walls or floors or lights or textures)
• or a presence being felt in the levels (perhaps the previous developers spawning as ghosts)

Ultimately, though this provided Jacky with new ways to deepen his level generation (he ended up pushing the multiplication side of things), it rendered my text generation somewhat moot; the randomisation would’ve had little narrative effect, and I might as well have written each of these set-pieces myself.

Design Attempt 3 – just build a thing

I returned to probably the most fundamental question – not ‘what would be best to build?’ or ‘how should I build it?’ but ‘what am I currently able to build?’ and ‘what can I build in the time that I have?’ In some design tasks, responding to time pressures and working within one’s own limits are better actions than planning something ambitious. Maybe I would be able to alter or develop a simpler core generator into something more structurally responsive, but for now I just needed to make something that would consistently output the text.

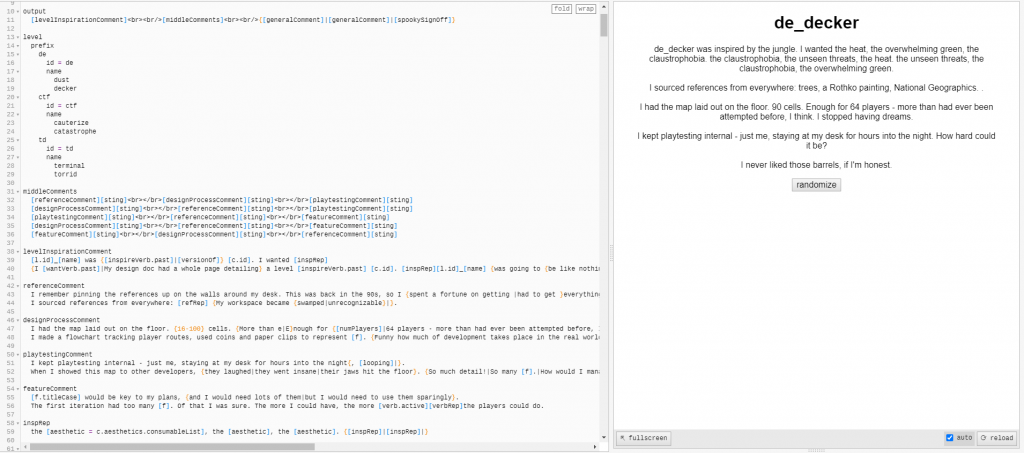

I revisited the experimental procedural text generators I had written in Perchance, and set about jamming out a 5-beat structure similar to the 5-act one proposed in Design Attempt 1, but limiting each ‘beat’ to a ‘comment’.

It was during this design iteration that I reconsidered one of my earliest assumptions: that this story needed to be about somebody other than the narrator. It was far simpler to construct something in the first person, and have the player relate – through listening/reading – to that character rather than to another that they were talking about.

While talking about this potential new direction, Jacky suggested we define how both the level and the story would change over time. I thought this was a brilliant suggestion, and one that I’ve found myself positing to designers and writers when working on theatre shows, but never really in game design!

By leaning into this idea of change over time, I could circumvent the problem of procedurally generating narrative immediacy. Instead, the sense of horror could be tied directly to the number of playthroughs a player had completed – things would get stranger and more complex as the player continued. This, we figured, could be juxtaposed nicely with a gradual deterioration in level fidelity – blockier textures, posterized textures, more noise in the audio mixer – to create a sense of chaos, terror, gradual unwinding, and to erode trust and create sympathy for an obviously haunted narrator.

Conclusion

From this process I concluded that procedural text generators are naturally good at some things – atmosphere and tone, different versions of the same thing – but quite inflexible when it comes to others. Working procedurally with narrative structure, while obviously possible, takes a lot of design time – something that, when taken alongside learning how to create a text generator in the first place, I ended up lacking on this project. Ultimately, the product worked at a much simpler level than I had first imagined, but that was only appropriate for the timescale (and my relative level of skill!).

As per last devlog, I started by answering some of Kate Compton’s questions for defining a generator’s ideal output, its properties and its constraints.

What am I trying to make?

I would like my generator to create an epistolary horror story – told through the medium of a developer commentary – about developing a 90s FPS.

By narrowing down the genre of my artifact, it became much easier to identify sources for inspiration and analysis. Below I’ve listed some examples:

• Epistolary horror
  • Dracula (Bram Stoker)
  • Frankenstein (Mary Shelley)
  • House of Leaves (Mark Z. Danielewski)
  • Graveyard Shift (Roger Matheson)
• Developer commentary
  • Portal
  • Amnesia: the Dark Descent
  • Resident Evil 2 (long!)
  • Paratopic (Robert Yang’s commentary rather than the actual developer’s, but useful for analysing horror design)
• Works about game/software development
  • Microserfs and Generation X (Douglas Copeland)
  • Halt and Catch Fire
  • Silicon Valley
  • The Social Network

•

•

•

What makes for a good example of this artifact?

Even without performing a deep analysis of each genre, I could come up with a number of factors that successful examples have in common:

• Epistolary horror
  • Is scary
  • A sense of foreboding
  • Often concerns an offscreen terror, or something that cannot be easily expressed in language
  • The speaker doesn’t know whether the message will be received or understood
  • A character not comprehending what is happening
  • Is full of questions
  • Feels like a subjective experience
  • Moments of respite vs mounting tension
  • Initial perspective (what’s happened?) -> a shift in perspective (this has happened) -> the true perspective (oh no, that has happened)
  • Mad science / the breaking of a natural boundary
  • A logical conclusion, given the information available (rules for dying to / defeating evil must be logical)
  • Populates imagination with a cast of unseen characters
  • A revelation
  • Language is the language of a correspondent/speaker
  • “What possessed them?”
  • Draws attention to details about a situation or environment
• Developer commentary
  • Populates imagination with a cast of unseen characters
  • Draws attention to (and recontextualises) details about a situation or environment
  • Delivers an understanding of the team or team members aims; sense of whether they succeeded or not
  • Reveals paths not taken
  • Accounting for or explaining decisions
  • Feels like a subjective experience
  • “What possessed them?”
• Works about game development
  • Mad science / the breaking of a natural boundary
  • Populates imagination with a cast of unseen characters
  • A revelation
  • “What possessed them?” -> interested in innovators and mavericks; what drives people to create new things

What makes for a bad example of this?

• Epistolary horror
  • Overly descriptive (literary language) or too direct in its description (no mystery)
  • Not scary, not thrilling
  • Exists in the realm of the known
  • Predictable
  • Structureless – no sense of build or direction
  • Overly structured – no sense of surprise
  • No consequence or cost to characters
• Developer commentary
  • Uninformative – doesn’t provide design insights
  • Too jokey
  • Unclear
  • Few observations – dead air
• Works about game development
  • Overly technical
  • Lacking in a human element / characters

How would a human build this thing?

It is helpful when making a generator to sit down with someone who makes the sort of artifacts you are building, and have them walk you through the process of making something. What questions do they ask themselves along the way? How do they make decisions? How do they describe the tradeoffs between choices? How do they describe the different problems that they have to keep in mind? How do they name all the parts of what they are working on, and all the relationships between them? (the academic term for this is an “ontology”)

Kate Compton, So you want to build a generator?

With the above questions as a framework, I approached my friend Stewart Pringle, currently Dramaturg at the National Theatre and also an expert in horror writing. His answers are too detailed to be published here in full, but here are some of the most useful provocations:

• ….horror is most closely aligned to comedy, and it’s really in that structural respect that it’s most true. Horror usually relies on a structure very like a joke, setup, assumption, shattering of that assumption, punchline – except whereas in a joke it’s the establishment and twisting of a convention into absurdity, in horror it is the twisting of a convention into uncomfortable or frightening territories…’
• Good questions:
  • ‘What’s the worst thing that could happen in this situation?’
  • ‘What’s this really about?’ – ‘horror isn’t an interesting end in and of itself, it’s a sublimated territory which your characters traverse, and what exactly it is that is being sublimated by it is the key question in the drama. What is The Wicker Man really about? Isolation, conventionality, the dangerous things in the wild parts of our nature. What is Suspiria about? Puberty, sexuality, suffering for art. You can do the same with all but the most pointless horror stories.’
• What constitutes ‘good horror’?
  • Having something to say
  • How much it raises the pulse
  • How long its images linger
  • How it encourages you to think about something differently (grief in Midsommar, racism in Get Out)
  • Being in ‘good taste’, ie not having ‘unpleasant and stupid things to say’, or saying them unpleasantly (Hostel is an example of horror being in poor taste)
• ‘The big trade-off between choices that I always think about is sort of a question of how much you tell an audience vs how much you leave mysterious.’
• ‘You have to keep in mind the story’s relationship to reality, particularly if it’s quite a wild or heightened story, and that can be a challenge.’
• ‘In any kind of narrative fiction you sort of want to teach the audience how to ‘read’ what you’re creating, but in horror there’s a real power in teaching them incorrectly, or teaching them differently, and then creating an exciting shift.’
• ‘If dramaturgy is only ever a series of small surprises followed by a bigger one, in horror I sort of think of it as a series of set-pieces leading to an almighty fuckstorm at the climax. In Whistle and I’ll Come To You, it’s a series of dreams that eventually lead to a full-on malignant apparition. In The Weir it’s a series of unconnected stories that gradually paint the picture of a dangerously unprotected and haunted universe.’

Stewart also provided my with some more examples of epistolary horror that I can look into:

• Whisperer in the Dark, Call of Cthulhu and Herbert West: Re-Animator (Lovecraft)
• Carrie, Jerusalem’s Lot and Survivor Type (Stephen King)
• A Story of a Disappearance and an Appearance (M R James)

Conclusions and Actions for my ‘Artist in a Box’

From my research and correspondence with Stewart, I could define my epistolary horror generator as something that needed to:

• Have a cogent theme (either consistently across the entire game experience or limited to, say, a group of 5 stages)
• Write in set-pieces, which collectively progress to a ‘larger’ set-piece near the end
• Divide set-pieces into four ‘beats’: setup, assumption, shattering that assumption, punchline
• Generate memorable images

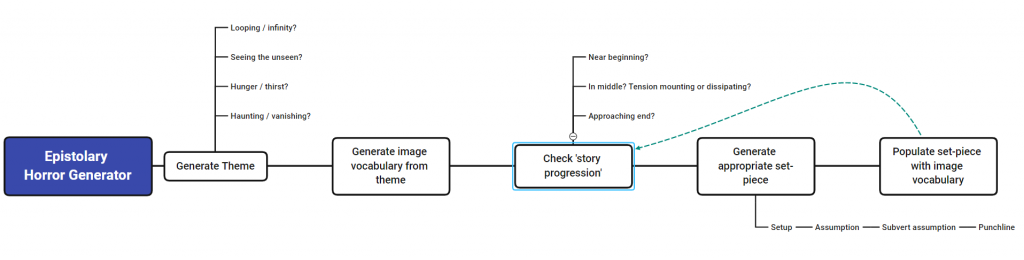

Obviously it’ll be a little more complex than the above diagram, but having three design goals on which to focus – theme, structure and imagery – feels helpful.

Since structure is going to play such an important part, I am sure I will be making use of storylets. Storylets (summarised in this blogpost by Emily Short) are pieces of content with prerequisites that govern when they are displayed, and which have an impact on whether other storylets are displayed after them. A simple example of this approach’s relevance to my project would be in ensuring that, in a given set-piece, a ‘setup’ piece of text is generated first, then followed by an ‘assumption’ piece of text, a ‘subversion’ then a ‘punchline.’

• Every time a storylet is displayed, it could tick up a ‘progression’ indicator.
• Setups are only displayed when progression = 0; assumptions at 1; subversions at 2; punchlines at 3.
• When progression is more than 3, it resets to 0, starting a new set-piece and beginning the process anew.
• Each reset might tick up a higher-level ‘tension’ indicator, which would unlock storylets more suited to the later set-pieces of a story.

I’m imagining these storylets to be structural ‘containers’ rather than bespoke pieces of writing, with [details] filled in by the theme-related imagery decided at the beginning of generation; they could even contain their own degrees of randomness, like the {A|B} functions of Perchance and Tracery.

The next steps are to begin coding the generator itself!

Identifying a Project

In my experimental mini-devs I had mostly focused on procedural text generation, researching VR, and messing about with shaders. I enjoyed working on procedural text, so was keen to push that further, but didn’t have a clear starting point for what I wanted to create.

Luckily, Jacky shared the beginnings of his Experimental Development project – a procedurally generated maze that would make the player feel like a ghost – on the support group chat. I was struck with a lot of ideas for how a procedural text generator might interact with a procedural level generator (finding spooky notes in different rooms, ‘hearing’ a voice as you explore, an isometric dungeon generator with procedural encounter descriptions), and we soon agreed to collaborate.

We set up a meeting to talk through possible avenues, and settled on a direction partly inspired by the low-resolution shader techniques Zsan had shared with us: the levels would be from a 90s/early 2000s FPS, and the player’s progress would be accompanied by a procedurally generated commentary, displayed in text on a era-appropriate HUD.

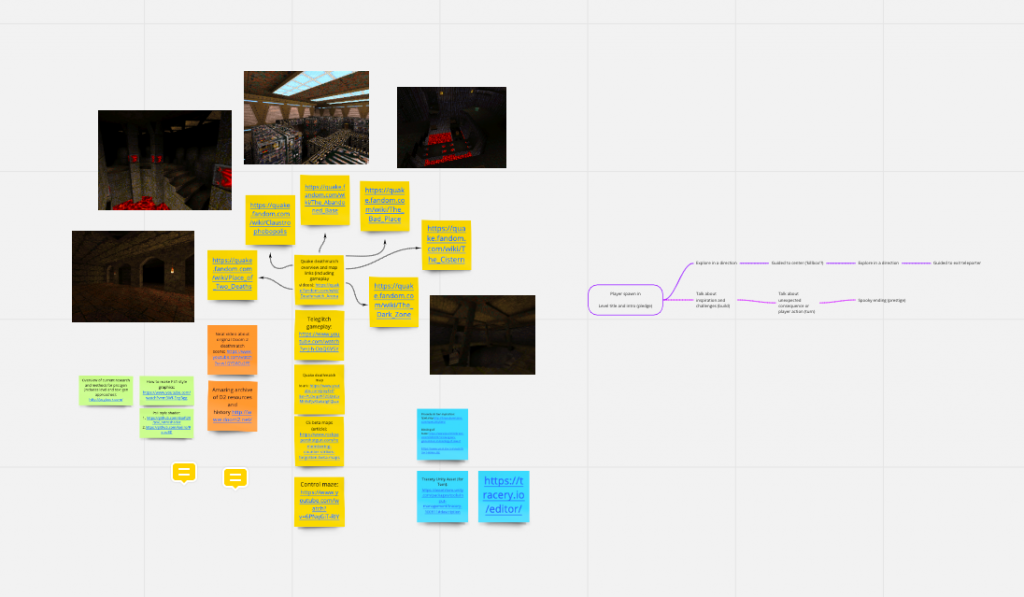

We also put together a Miro for collecting design tutorials, aesthetic inspiration, useful tools and examples of developer commentary.

From our research (and also a suspicion that this might be the best way to keep scope manageable) we concluded that deathmatch levels might be an appropriate constraint:

• Deathmatch levels are self-contained and generally encourage players in a ‘looping’ direction. These loops are arranged around central ‘killboxes’ – open spaces that players are naturally directed towards. We suspect this design will make generating levels easier than ‘single-player’ levels; indeed, Jacky’s generator already functioned off a ‘figure-of-eight’ rule, which connected two ‘edge’ rooms to one ‘central’ room.
• Levels each have a unique, vivid aesthetic, but their architectural and environmental design aren’t necessarily governed by a linear or progressive narrative, nor do they have to connect to each other. This means the level generation procedure doesn’t have to worry about building ‘towards’ a particular end, funnelling the player toward an exit, or having a logic to the order of aesthetics (textures going from light to dark or warm to cold, for example).
• Deathmatch levels are arenas and play-spaces rather than puzzles or set-pieces. The logic of the former approach is much quicker to code than the latter, which requires a more rigorous set of conditions to be met in order to produce a ‘correct’ map (a room with a key cannot be spawned behind a locked door, for example; the lever to control a bridge must be on the side at which the player will first arrive, unless there is an alternate route – complicated!).

The first instance of FPS levels being designed and released specifically for multiplayer occurred in Quake, so on Friday we sat down to watch some walkthroughs of Quake Deathmatch levels for inspiration.

Identifying My Tool

In practising procedural text generation, I had already used two tools: Kate Compton’s Tracery and Perchance, a web-based platform for creating and sharing text generators (which is very popular with the indie TTRPG scene).

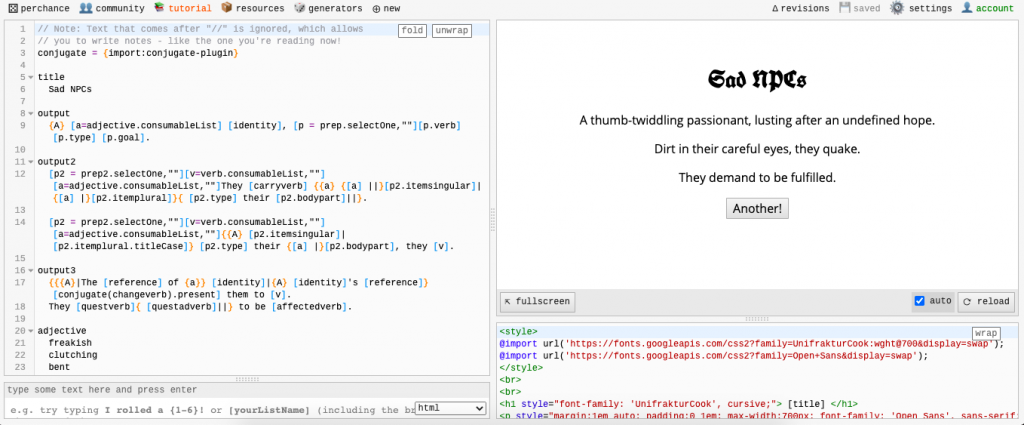

The first product was a simple NPC generator, which I initially built in Tracery and then exported to Perchance.

It outputs three sentences:

• A character (adjective and occupation) and something they are doing
• A description of something they are carrying (item, adjective for item, location on character)
• An action by another character that affects them, or an objective they pursue and how they pursue it

In building this I found that using grammatical prepositions (after, before, with etc) as the first generative step made for much more distinct sentences, and allowed me to be more granular in my list-making. I also noticed that adjectives often made lines overly unique, which had the odd affect of making them feel more similar to previous lines. [reference Procedural Storytelling for Games here] This problem was solved by decreasing the likelihood of the generator assigning adjectives.

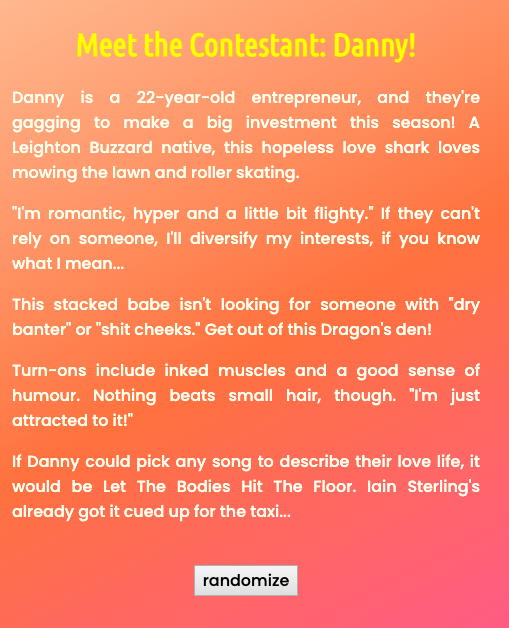

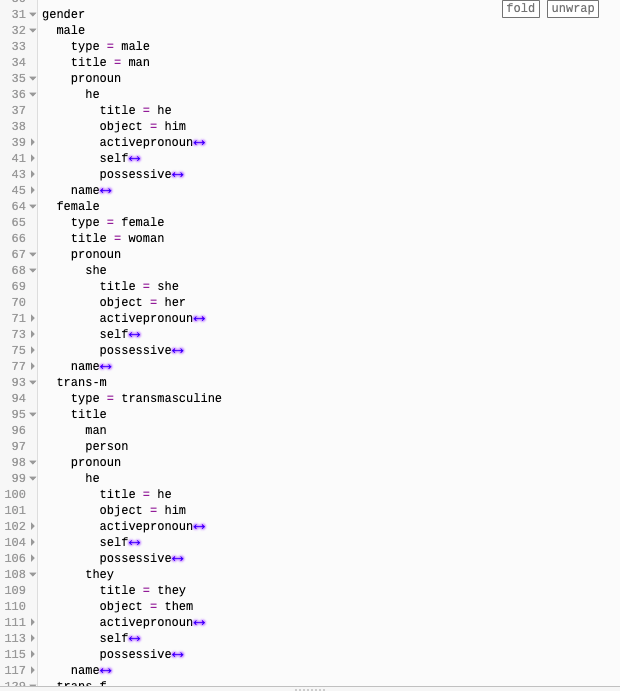

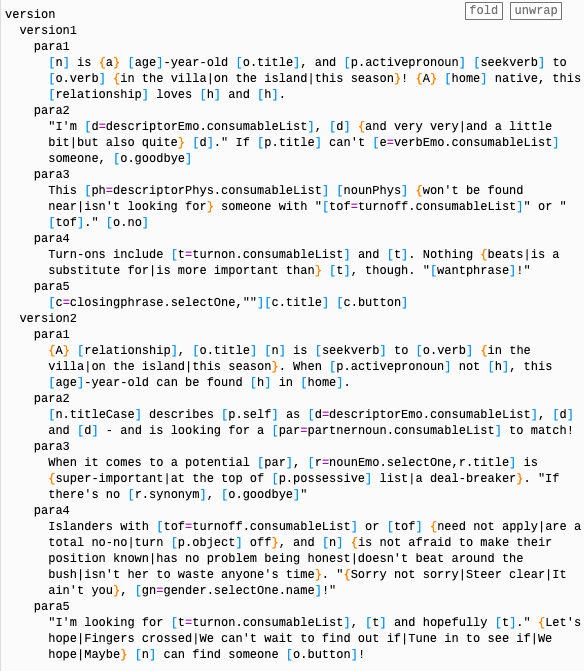

The second product I wrote was a Contestant Generator for Love Island. I analysed examples from ITV’s own Islander introduction copy and created a generator capable of outputting five short paragraphs, defined at the top by two random choices – gender (for grammar) and occupation (for puns) and gender (for grammar).

•

•

This generator was slightly more complex in the sense that more dictionaries were required (for hometowns, hobbies, attitudes etc.).

In order to achieve even this level of logical sense within a reasonable timeframe I had to sacrifice variation in sentence structure, so in some ways this generator is much simpler than the previous.

Unfortunately, my research failed to find an easy way to connect a powerful tool like Perchance to Unity, so I was left with the following options:

• Tracery
  • Pros:
    • Easy to understand
    • Built for randomness
  • Cons
    • Can’t see a super easy way to get it to ‘remember’ previous states
    • Less variable-friendly
    • JSON syntax a bit tiresome (lots of quotations)
• Ink
  • Pros:
    • I’m already familiar with the syntax
    • Easy to implement in Unity
    • Remembers states very well; variable-friendly
  • Cons
    • Not explicitly designed for ‘generation’
    • Lists & variables are locked to single words, so might be hard to integrate more phrase-centric grammars
• C#
  • Pros:
    • Native to Unity, no need for ‘bridging’ scripts or functions
    • I’m already familiar with the syntax
    • Very flexible, editable Lists
    • Feels like the Perchance ‘method’ could be relatively easily translated to C#
  • Cons:
    • Would have to write own functions for shuffling, choosing, etc.
    • Probably a similar level of syntax ‘stickiness’ with quotation marks for strings etc.

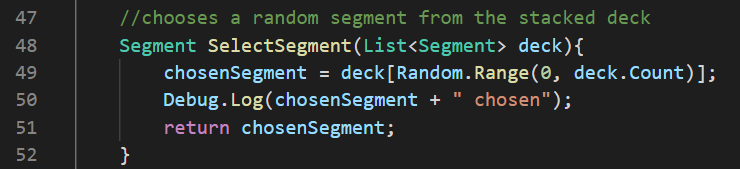

I’m still mulling over which to use, but I’m leaning towards creating my own functions in C# – this would add another facet of technical experimentation to this project, which might help me grow my skills further.

Planning a Generator

Kate Compton’s ‘So you want to build a generator?’ provides a handy guide to ideating, defining and then building a procedural generator, summarised here:

• Write down the thing that your generator will make
• Write down everything you know that makes for a successful example of one of those things – properties to strive for
• Write down everything you know that makes for an unsuccessful example of one of those things – constraints to work around/within
• Consider how a human would build these things – consult an expert, research ‘frameworks’
• Decide on a generative methods – options include Distributive (like picking options from a deck of cards), Parametric (altering individual elements of a handmade object), Tile-based (chop the problem into units, have pre-made objects fill those units in different orders), and Grammar-based (a series of rules and symbols that ‘unpack’ into sub-rules and sub-symbols, like language, for instance).
• Build and test your generator!

Over the next week, I will endeavour to answer these questions about the artifact I would like the generator to create, as well as getting in contact with some horror writers that I know and researching frameworks for writing these kinds of stories. I will also start scoping the generator, deciding how much text, how many times per level the generator will need to run, and what kind of connectivity I would like the generator to have with each level.

Denizens of the Dying World (abbreviated from now on to DDW), by Brian Yaksha, is a small character generator, ostensibly designed for the dark TTRPG system ‘Mork Borg.’ Brian is a game designer who both writes his own games and works on others’, as well as blogging at https://www.rakehellzine.com/.

DDW is written using Perchance, and the great thing about Perchance is that anyone can look under the hood of its generators by pressing the ‘edit’ button in the top right.

On the left you can see the ‘grammar’ – the rules by which the generator is governed. It’s actually extremely simple, outputting a [name], a [surname], a [type], a [want], and a [vibe], followed by some [combat] stats. However, by avoiding overly complex grammatical rules and focusing on highly specific list entries, the generator can produce consistent-feeling characters, with a few surprises.

Above are just five of the generator’s 100 types (100 is apparently a good number). The types follow a consistent grammatical rhythm of four (sometimes five) clauses, which create a sense of past and present, and contrast description with action. This approach is highly reminiscent of Adam Saltsman’s ‘couplet’ technique in Overland, where he paired a past biographical detail with an intention for the future.

The [want] is the only rigid selector in the generator: ‘they know of [placetype] [placename].’ Perhaps it is unfinished?

Takeaways

• Lots of options make for better-feeling randomness (100 is a good number)
• Specific and highly differentiated options make for better world- and story-feel
• Contrasting couplets create drama

With regards to writing stories, of course, I can’t rely on such consistency in player action, and will need to account for players missing beats or skipping through text entirely. By making unskippable intros and outros to each level that tie into the environment or set up the next one, I ought to be able to ensure a sense of continuity; any middle story beats (say, contained in a pickup or interactable) should probably be general enough to apply to any level (unless I can magic up another month to work on this!).

Personally, I am interested in digging further into grammatical rules. The generator I am currently working on – Sad NPCs – has a grammatical system predicated on prepositions. If it chooses ‘by’, for example, then both the [verb] and the [influence] can select from only the [by] pool. This also works for genders. Obviously, the combinatorial issues are fairly serious, but I prefer the potential for structural surprise! I can already see that creating a deep-feeling generator is not the work of days or weeks, but months and maybe even years…
